Overview
Four-motor articulation, an integrated battery and a lockable nurse panel deliver dependable control for intensive care.
Hospital Beds

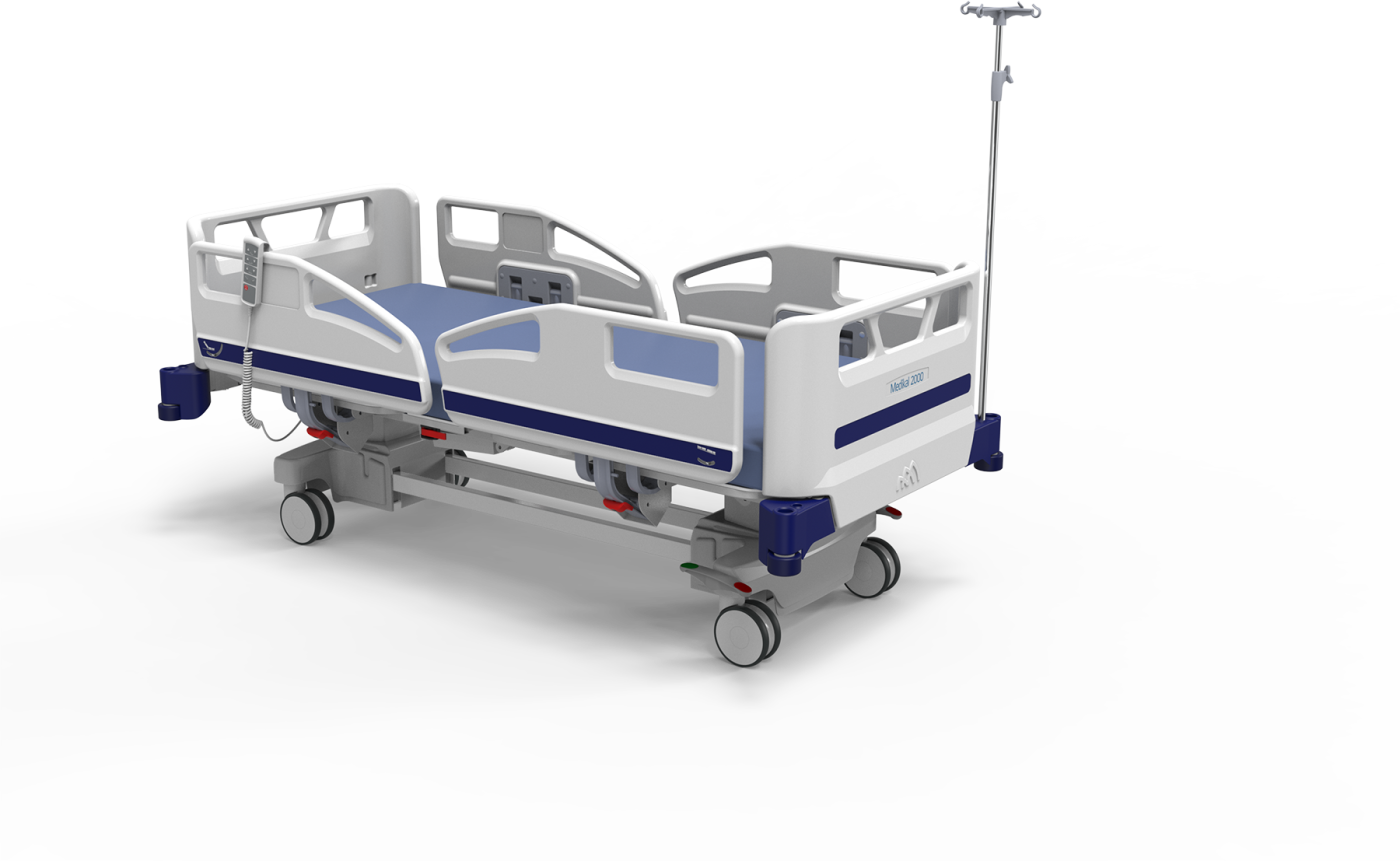

Electromechanical ICU Bed (4 Motors) PLUS A9
Four-motor articulation, an integrated battery and a lockable nurse panel deliver dependable control for intensive care.
103,5 cmWidth (with Bumpers)
212,5 cmLength (with Bumpers)
48 cmMin. Height
88 cmMax. Height
TSE Certified
Warranted
Fast Delivery
Tech Support
The PLUS A9 is a four-motor ICU bed driven by quiet linear actuators with a minimum IPX4 rating. Backrest, leg, height, Trendelenburg and reverse Trendelenburg are adjusted electronically, while a nurse panel with function locking keeps control safely managed.
Manual and electronic CPR, polypropylene side rails, detachable head and foot panels and a four-section ABS reclining surface are built for clinical use. A graduated knee mechanism, angle indicators on the side rails and 150 mm central-locking castors provide safe, stable movement.
An integrated battery, IV pole, urine bag holder, nano-ceramic-coated powder-coated metalwork and an 85x190x12 cm 28-density mattress complete a care solution rated for a 250 kg safe working load.
General Features
- Linear motors with minimum IPX4 protection for silent operation
- Hand control
- Nurse control panel with function lock

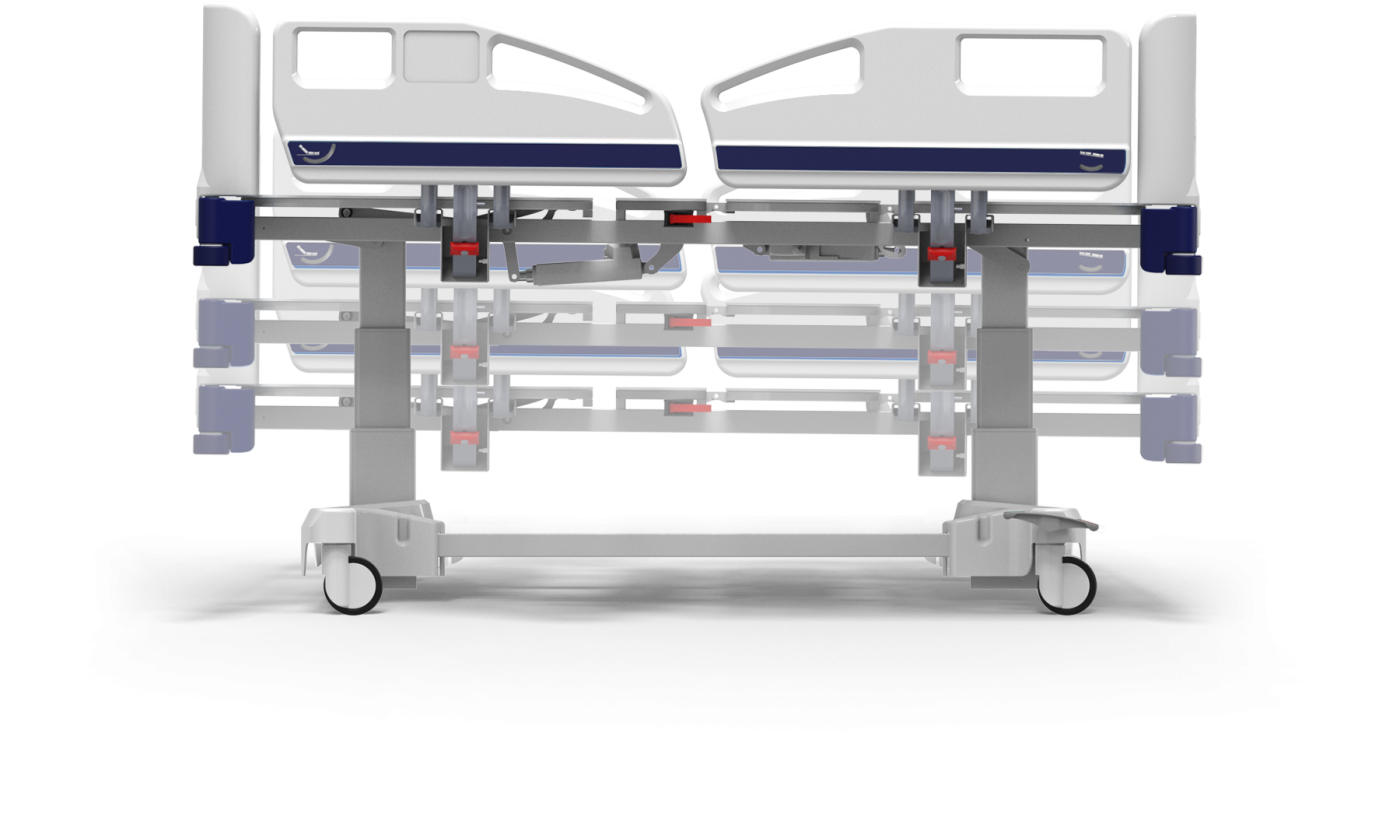

- Electric backrest, legrest, height, Trendelenburg and reverse Trendelenburg movement
- Manual and electronic CPR
- Polypropylene (PP) side rails with detachable head and foot panels
- Four-section lying surface made of ABS
- Battery
- Graduated knee adjustment mechanism

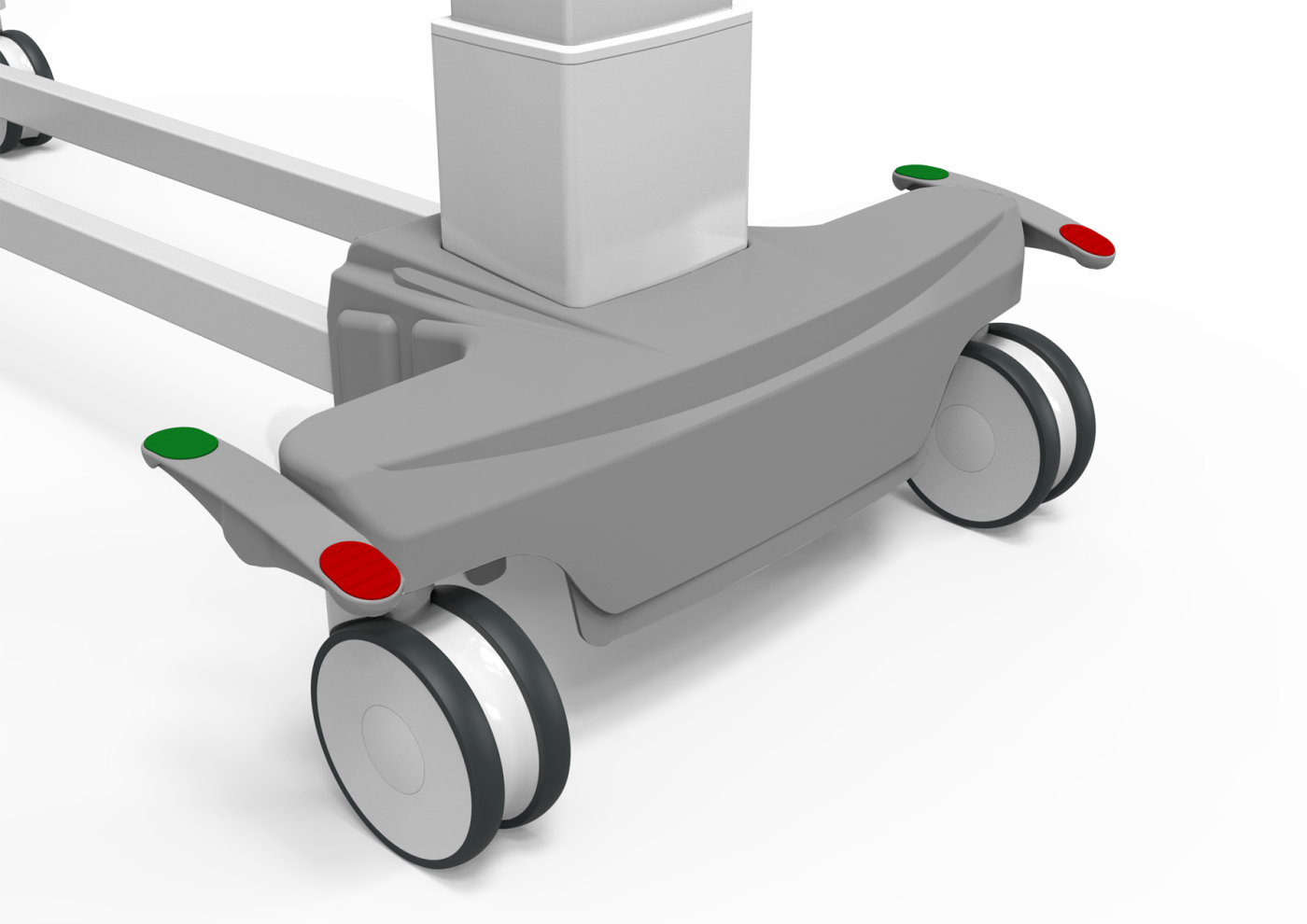

- 360° swivel castors with central locking (150 mm)
- Protective plastic bumpers
- Urine bag holder
- Accessory sockets
- Height-adjustable IV pole
- Nano-ceramic coated, electrostatic powder-coated metal parts
- Backrest auto-regression (slide)
- Angle indicator on the side rails
- 85x190x12 cm, 28 density mattress
| Width (with Bumpers) | 103,5 cm |
|---|---|
| Length (with Bumpers) | 212,5 cm |
| Min. Height | 48 cm |
| Max. Height | 88 cm |
| Mattress Platform | 85x190 cm |
| Backrest Angle | 70° |
|---|---|
| Legrest Angle | 45° |
| Trendelenburg Angle | 16° |
| Reverse Trendelenburg Angle | 16° |
| Safe Working Load | 250 kg |
Positions
The equipment below is available on request in addition to the standard product.
- Colour-customisable head panel and side rail inserts
- Lockable head and foot panels
- Patient chart holder
- 5th wheel
- Defibrillator tray
