Genel Görünüm
Paslanmaz çelik itme barları ve hidrolik üç eksen ayarıyla yoğun acil servis temposu için dayanıklı bir platform.
Brancards
Brancard d’urgence hydraulique M-2 T800
Stainless-steel push bars and three-axis hydraulic adjustment make a durable platform built for high-throughput emergency departments.
84 cmWidth
208,5 cmLength
62 cmMin. Height
90 cmMax. Height
Certifié TSE
Sous garantie
Livraison rapide
Assistance technique
The M-2 T800 hydraulic emergency stretcher provides hydraulic height, Trendelenburg and reverse Trendelenburg adjustment via foot pedals. Its two-section patient surface in compact material and gas-spring controlled backrest enable fast, secure positioning.
Stainless-steel push bars and metal side rails deliver durability under heavy daily use. Centrally braked 200 mm castors swiveling through 360°, combined with a fifth wheel for directional movement, allow agile maneuvering. Corner IV-pole sockets and bumpers, together with a telescopic IV pole, support everyday workflow.
With nano-ceramic coated, electrostatic powder-coated metalwork, aluminum telescopic columns, an ABS-plastic clad base chassis, an oxygen cylinder holder, a patient restraint belt, an X-ray cassette tray and a 60x190x8 cm 28-density mattress, the M-2 T800 offers a 230 kg safe working load.
Caractéristiques générales
- Nano-ceramic coated, electrostatic powder-coated metal parts
- Two-section lying surface made of compact laminate
- Easy-to-operate folding metal side rails
- IV pole sockets and bumpers at all four corners
- Telescopically adjustable IV pole
- Stainless steel push handles
- 360° swivel castors with central braking system (200 mm)
- 5th wheel (provides easy directional movement of the stretcher)

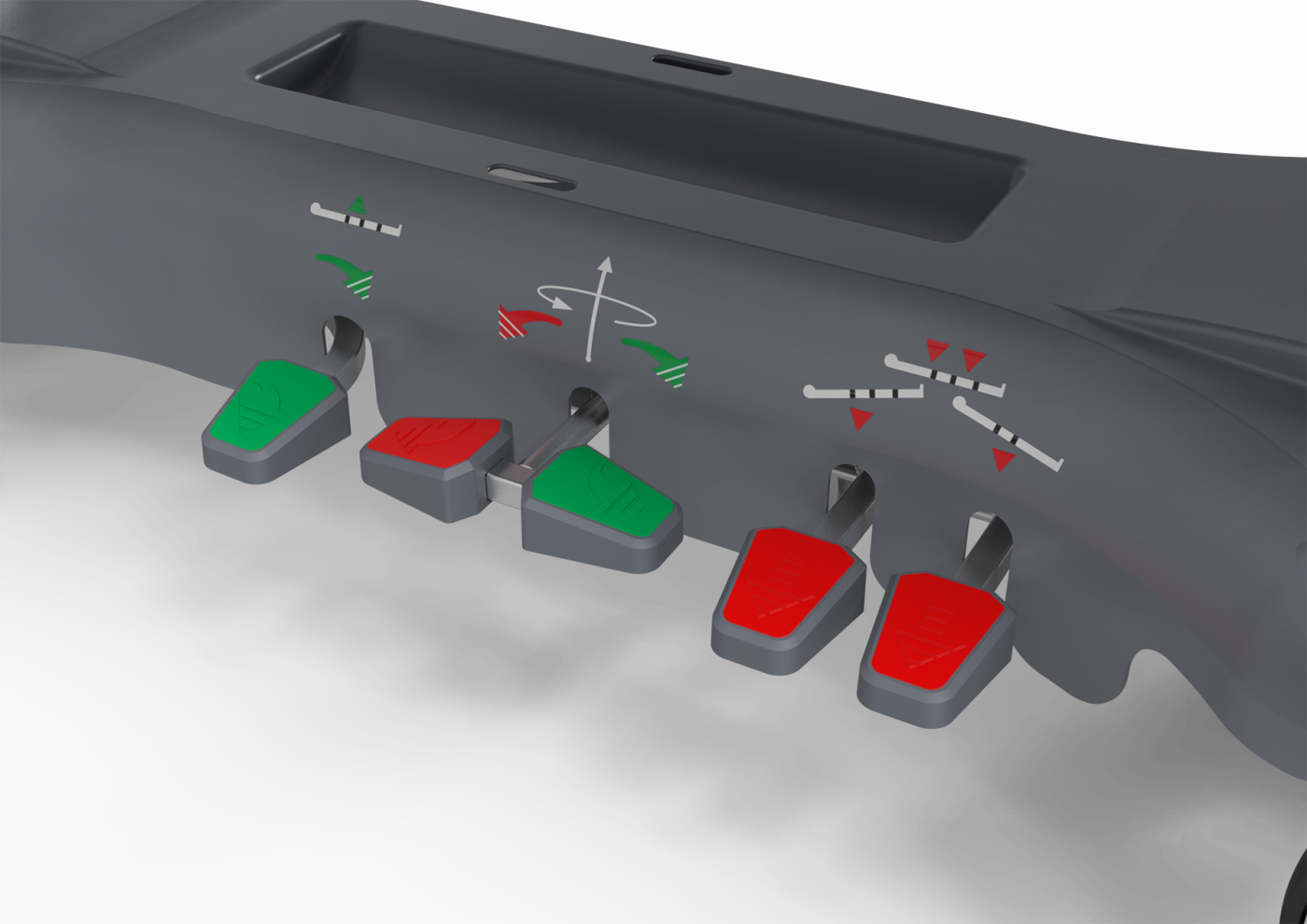

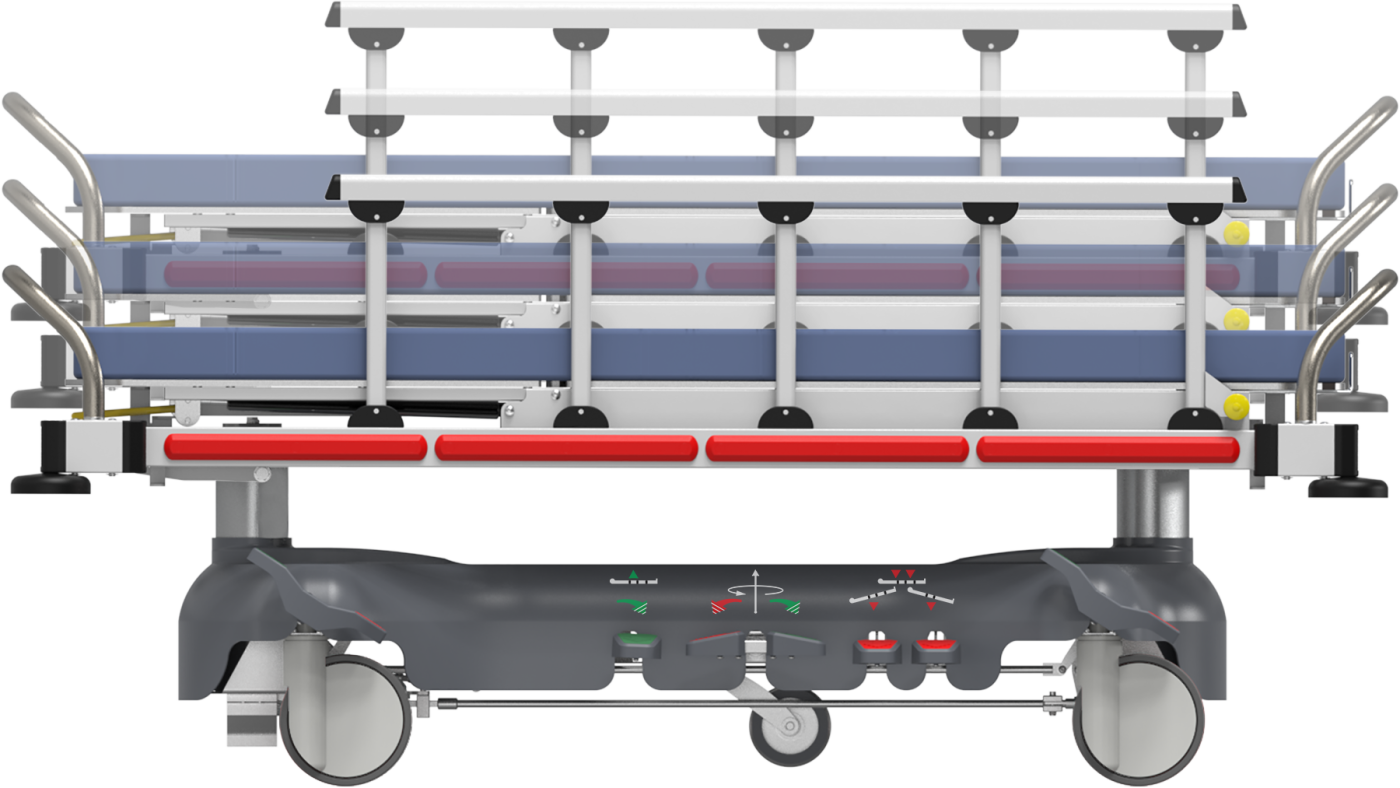

- Hydraulic height, Trendelenburg and reverse Trendelenburg adjustment via foot pedals

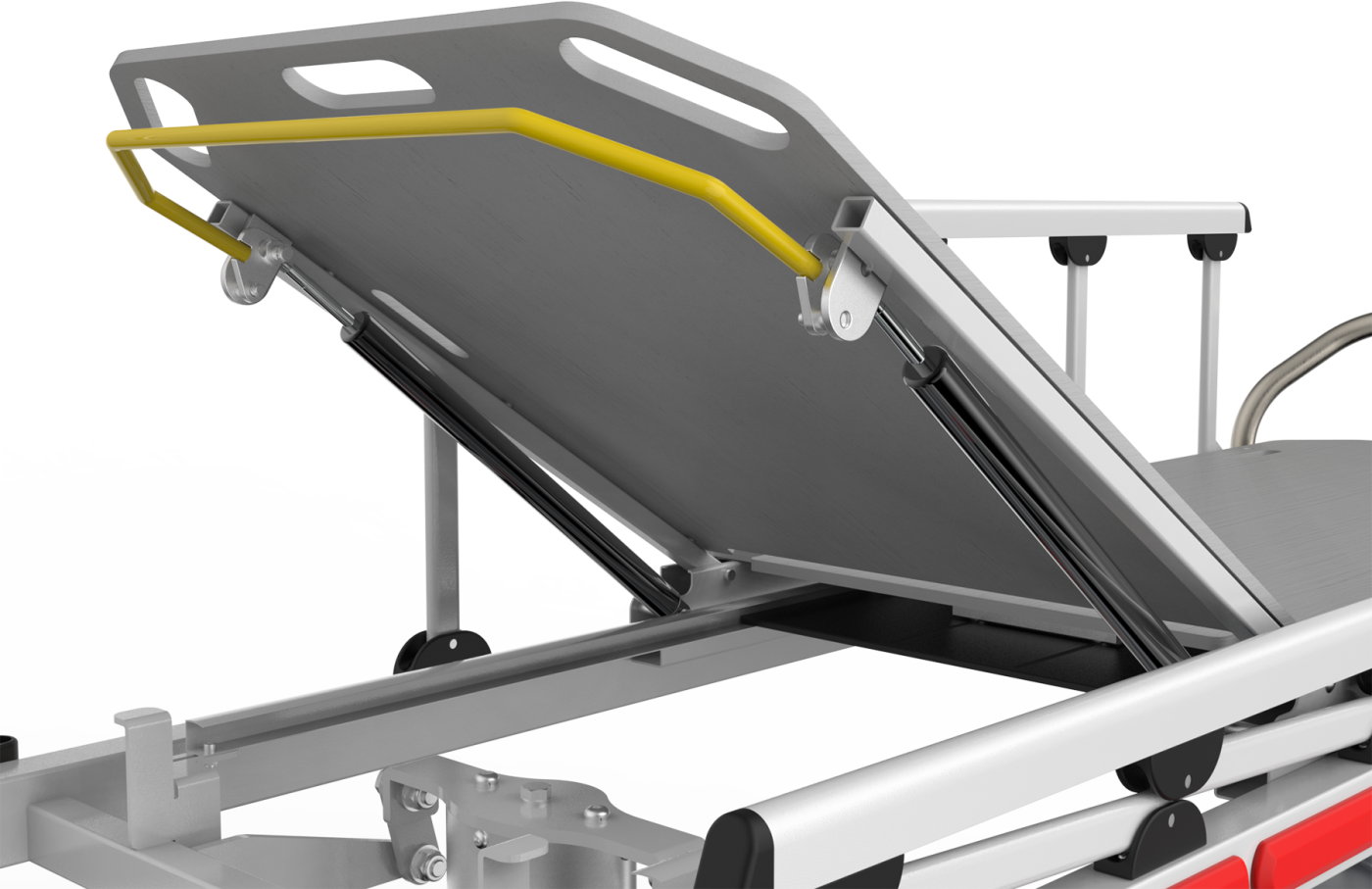

- Gas spring controlled backrest adjustment
- Aluminium telescopic columns
- ABS plastic covered base chassis
- Oxygen cylinder carrier
- Patient restraint belt
- 60x190x8 cm, 28 density mattress
- X-ray cassette holder
| Width | 84 cm |
|---|---|
| Length | 208,5 cm |
| Min. Height | 62 cm |
| Max. Height | 90 cm |
| Mattress Platform | 60 x 193,5 cm |
| Backrest Angle | 90° |
|---|---|
| Trendelenburg Angle | 10° |
| Reverse Trendelenburg Angle | 10° |
| Safe Working Load | 230 kg |
Positions
Informations et devis
Remplissez le formulaire pour obtenir les prix, les détails techniques et les conditions pour les commandes en volume ou sur projet. Notre équipe vous répondra dans les meilleurs délais.
